Precast Cast Planning

The IMPACT Precast Cast Planning software module helps you schedule and plan your production all in 3D. It is fully customisable to suit your exact set-up in terms of factories; production halls through to individual production beds, casting tables and moulds.

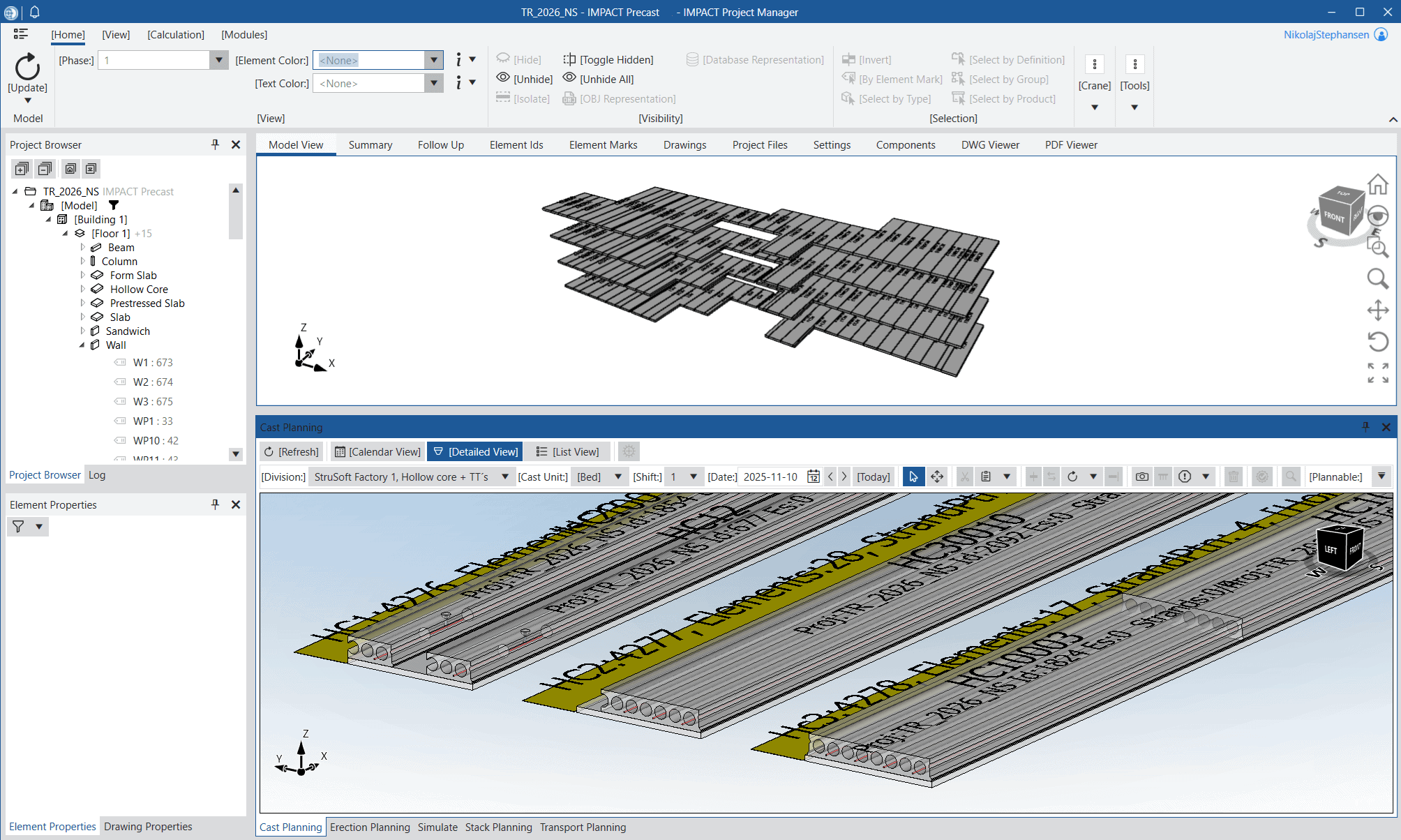

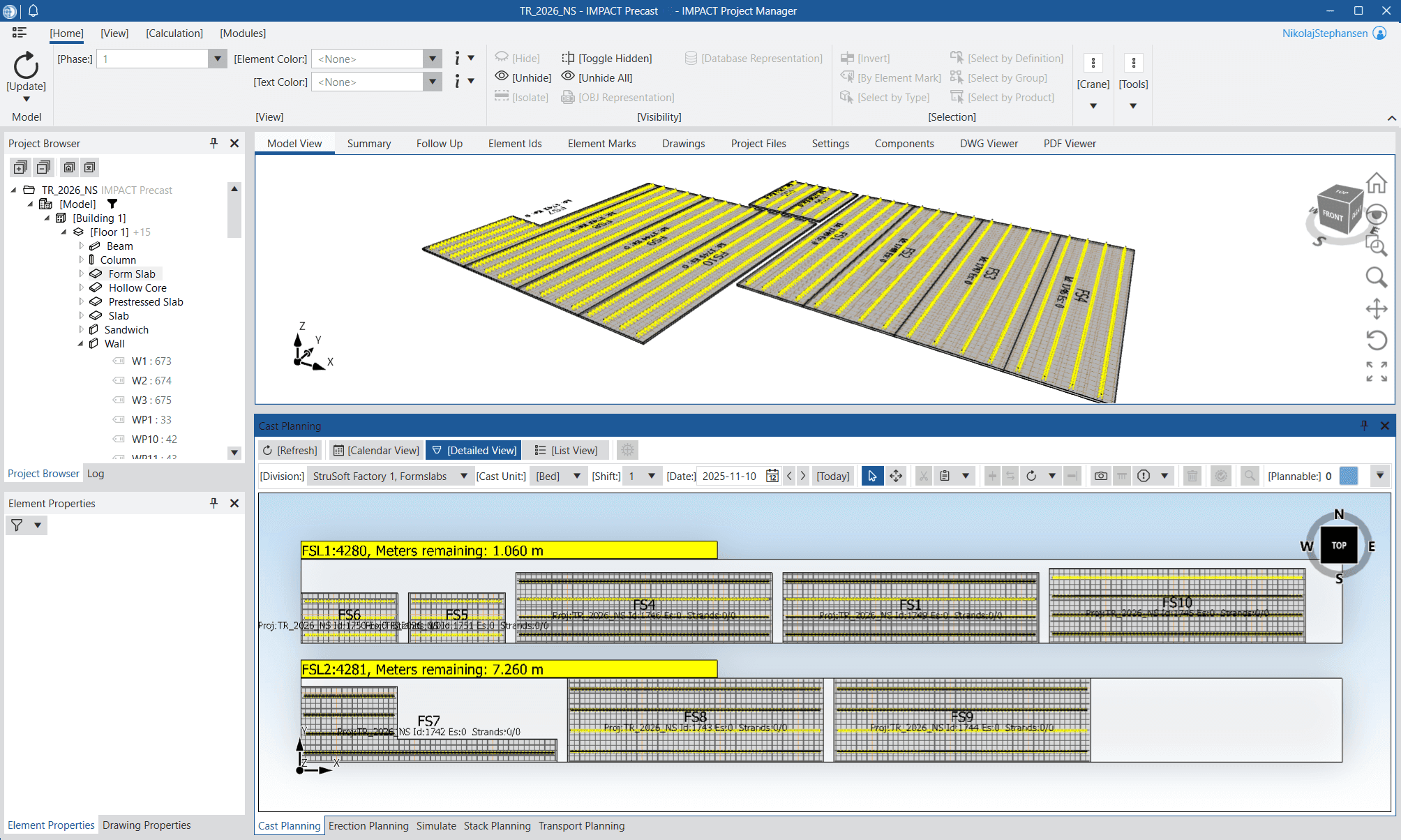

It is flexible to help you plan any types of precast elements such as solid walls, sandwich walls, double (twin) walls, hollow core slabs, double tees, filigree slabs, columns and beams.

You plan in full 3D with the IMPACT Project Manager, which is very simple to use and you don’t require any 3D modelling skills or prior knowledge of modelling software.

Watch the Precast Cast Planning Video

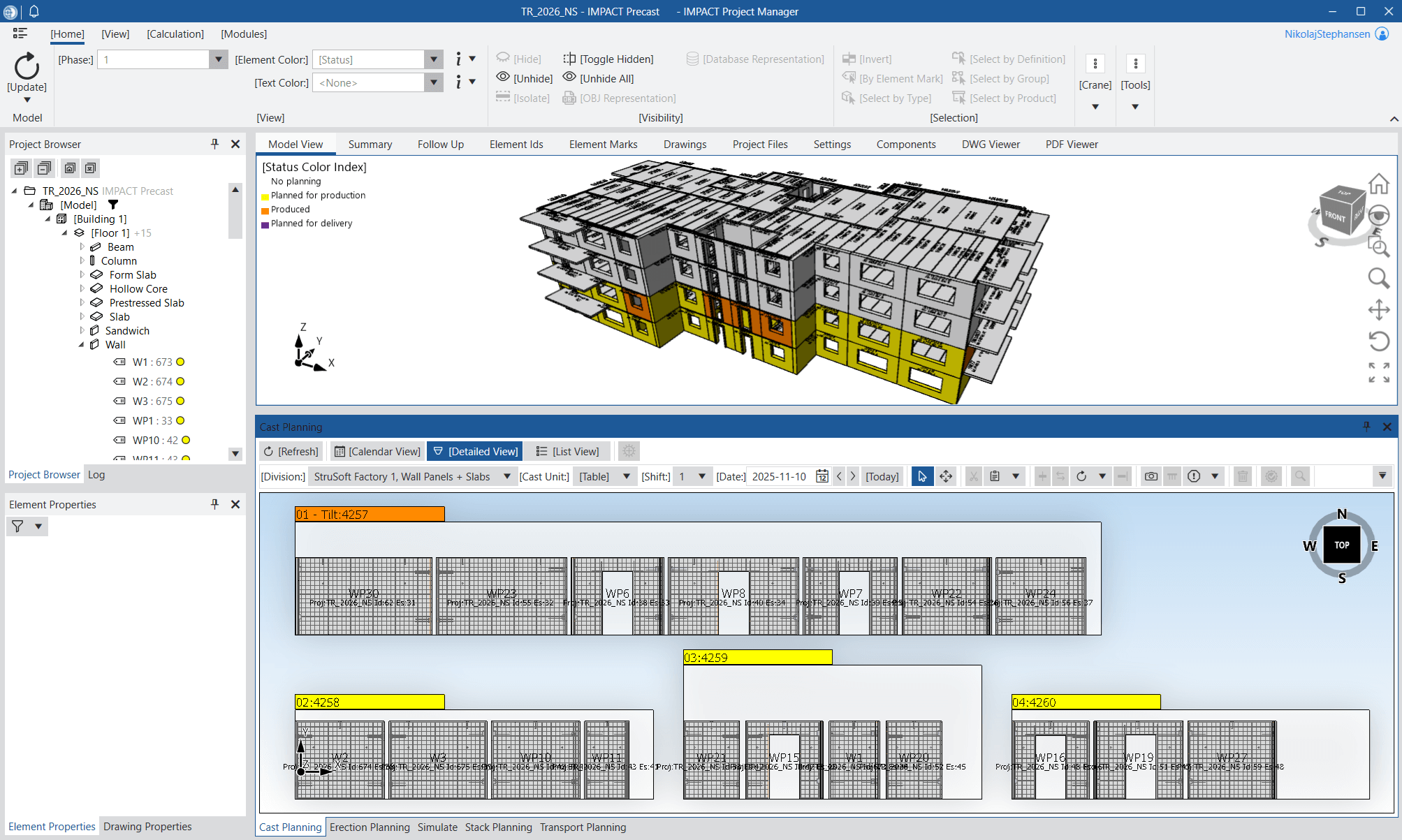

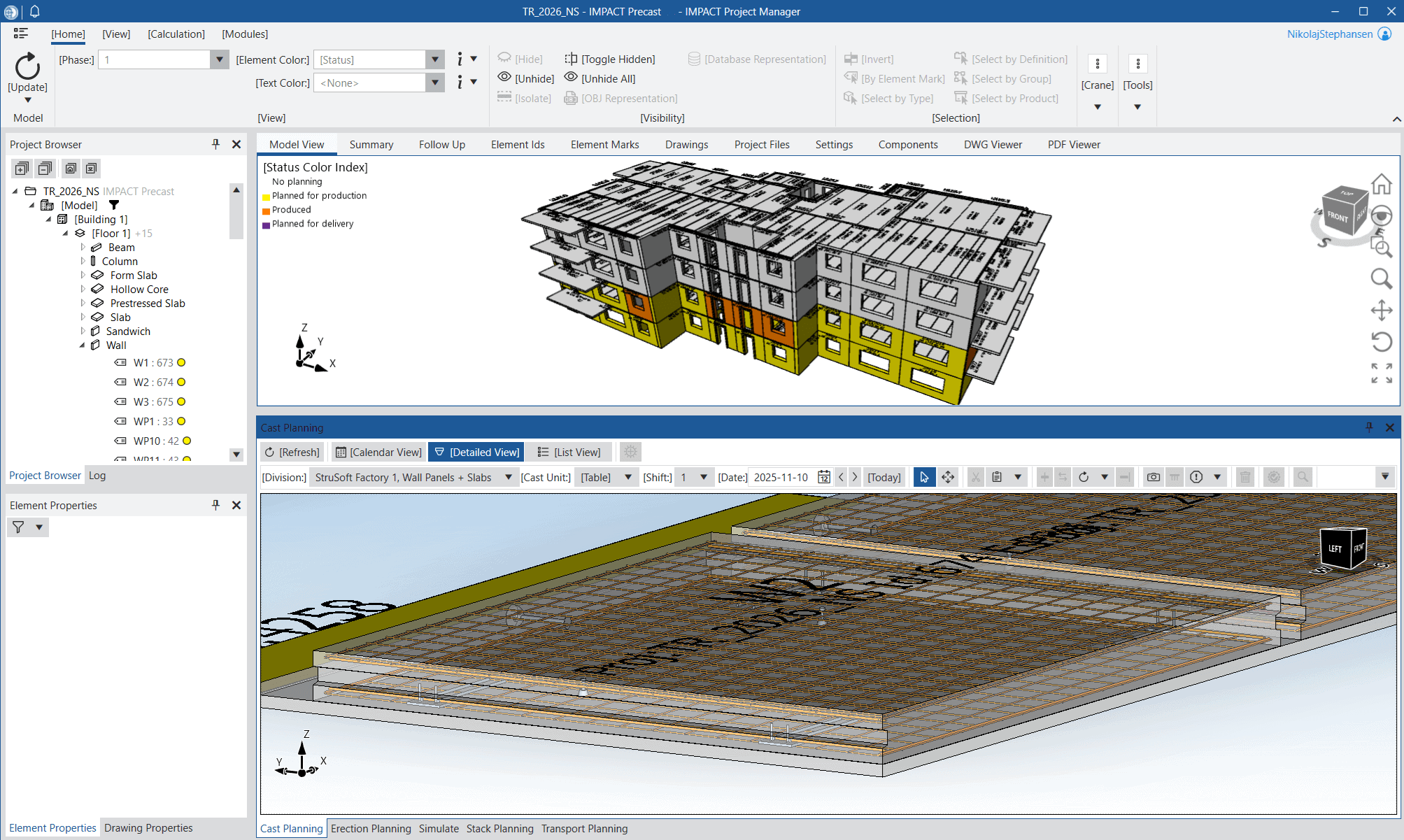

Plan anything in full 3D!

The 3D Cast planning system is extremely versatile and you can plan anything you wish or any type of bespoke precast element which can be imported with the Linked Element feature.

You can also import 3D model data from Industry standard software to use for planning in IMPACT, such as AutoCAD, BricsCAD, Revit and Tekla® Structures.

If you don’t have a 3D model or drawing available from your design department you can still plan with geometry imported Excel and import and swap out with the 3D model data and shop drawings when they become available.

Cast Planner Features Benefits for your Precast Projects
Automatic Cast Planning Auto plan to transport, stacks and erection sequences
Drag and drop from the 3D model Never miss a precast element from a project
3D Visual Planning Visualise all of your production capacity
Cast Calendar Easy to plan dates and schedule production
Bed/Mould Utilisation Rates Fill your beds/moulds to the daily maximum
Plan for Multiple Factories Connect to real-time data from anywhere
Plan for Multiple Projects Mix and match project data to optimise

Why wait? Apply below to download a trial license of IMPACT and get started on your journey today!

Apply for a Trial

IMPACT Wiki

For full technical details on the IMPACT Precast Cast Planning module please visit the IMPACT Wiki by clicking here.
