Double Wall

The IMPACT Double Wall module helps you design and detail precast walls in 3D, including automatic cast in lifters; bracing generation, and lattice girders. It generates automatic shop drawings, reports and in conjunction with the IMPACT Reinforcement module, automatic reinforcement templates too.

Watch the Double Wall Video

  • Design and detail precast walls in 3D, including automatic cast in lifters; bracing generation, and lattice girders.
  • Generate automatic shop drawings and reports
  • Generate automatic reinforcement templates in conjunction with IMPACT Reinforcement module
  • Use in combination with AutoCAD, BricsCAD, and Revit

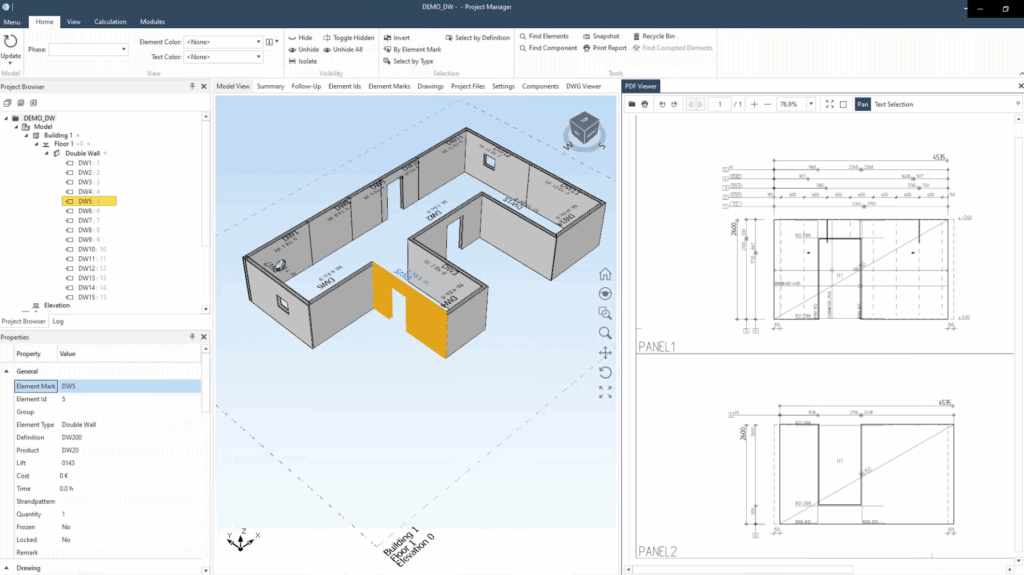

IMPACT Double Wall

Features of the IMPACT Double Wall module include but are not limited to: electrical keys; cast-in materials; recesses; lifts; placing of lattice girders; end stops; openings; reinforcement templates and much more.

Why wait? Apply below to download a trial license of IMPACT and get started on your journey today!

Apply for a Trial
